DRAWWORKS
1982 Model Spencer Harris 7000 S/D Drilling Unit S/N 84
Powered by Twin 3406 CAT Diesel Engines (350 Horsepower) with Twin Disc Torque Converters 1 1/8" drill line LEBUS Groove Foster Make-up and Break-out Catheads
Parmac Hydromatic Brake
SUBSTRUCTURE & DERRICK
Spencer Harris 16' Box-on-Box Type with Backup Ramp

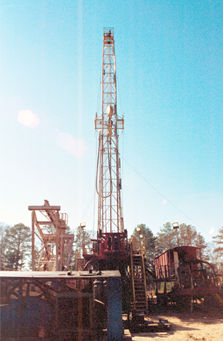

Spencer Harris 96' High 250,000# SHL Hydraulically Raised and Mechanically Scoped Mast
Spencer Harris 5 Sheave Crown Block
MUD PUMPS
Two (2) Gardner Denver PZ8 Triplex Powered by Cat 379
DRILL STRING
Drill Pipe-10,800' 4" 14# Grades E, S, and X (Inspected Premium 9/01) with Full-Hole Connections
Drill Collars - Twenty 6-1/4" Full-Hole Connections
GENERATOR/ WATER TANK
Delco 200 KW Generator Powered by 375 CAT Diesel Engine
CAT SR-4B 250 KW Generator Powered by 343 CAT Diesel Engine
MUD TANK SYSTEM
Two 400 Barrel Mud Tanks, 40' L x 8'W x 12'H with 10 HP Mud Agitators
SWACO Double Screen Shale Shaker
SWACO Desiliter
DEMCO Desander
Four (4) Mission Magnum 5" x 6" Centrifugal Pumps Powered by 50 HP Electric Motors
400 Barrel Water Tank
|
WELL CONTROL EQUIPMENT
Townsend 11" 3000 Pipe & Blind Ram
5000# Choke Manifold with 4-Way Cross Hydrill 3 Station 30 Gallon Closing Unit
ROTATING/TRAVELING EQUIPMENT
Oilwell 17.5 Rotary Table
Ideco Shorty 160 Ton Traveling Block with four (4) 32" Sheaves
Skytop Brewster 4SX Swivel
4-1/2" Square Kelly with HD Drive Bushing
DOGHOUSE/FUEL TANK/CATWALK
8' Wide x 40' Long Top Doghouse w/20 Lockers and Knowledge Box
10' Wide x 8' High x 30' Long Fuel Tank with 4 Compartment Lubester
4' Wide x 60' Long Catwalk with Collar Box
HANDLING TOOLS/AUXILLARY EQUIPMENT
Electric Slickline
BJ Type C Tongs
Drill Pipe Slips
BAASH-ROSS Drill Collar Slips, Elevator Links & Miscellaneous Handling Tools
Martin Decker Clipper 360,000# Weight Indicator
Totco Dual Pen Geolograph
3" ID Rotary Hose
8-5/8" Casing Elevators
Three (3) Sets of Pipe Racks
LIVING QUARTERS
Fully Furnished Skid-Mounted Crew House with 10 Bunks
Fully Furnished Skid-Mounted Toolpusher House with 4 Bunks
|
